ChM Trauma

Foot Implants

Fixation systems for fractures in the midfoot, hindfoot, and forefoot, ensuring stable reconstruction of the foot’s intricate anatomy.

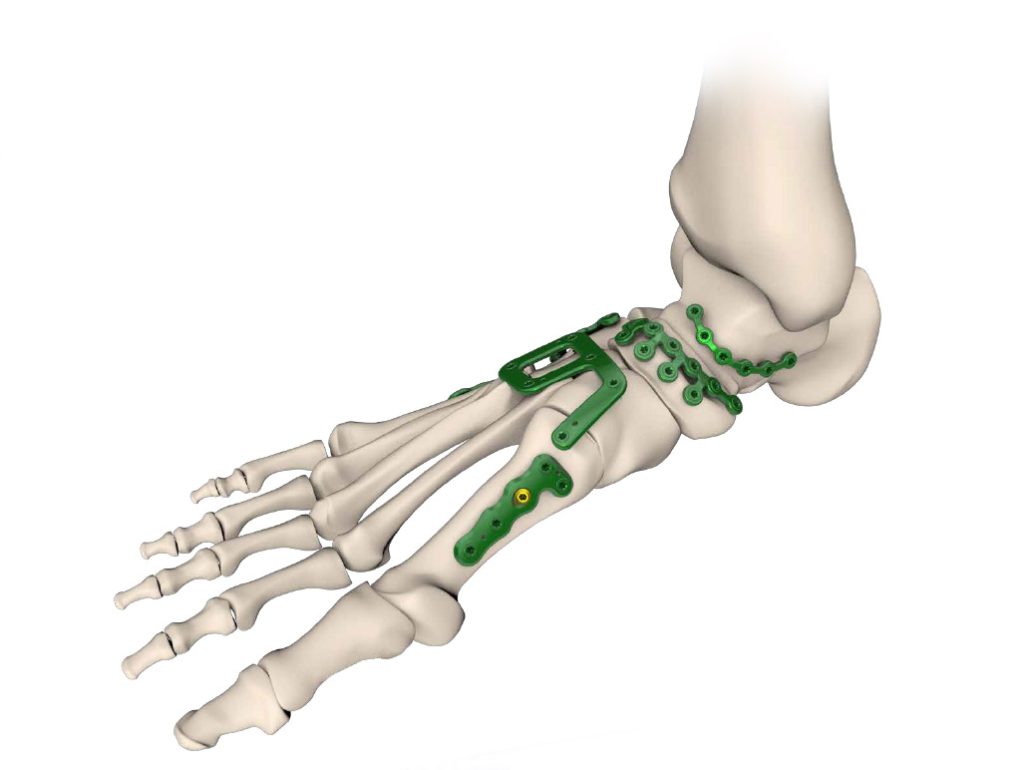

Foot Plates System

4.0ChLP System

The 4.0ChLP Foot Plates System is a comprehensive titanium implant solution designed for the surgical treatment of foot fractures and deformities. It includes anatomically shaped plates for specific bones (such as the talus, navicular, and cuboid), as well as versatile plates for broader applications. The system offers self-tapping cortical screws in different diameters (Ø2.4, Ø2.7), compatible instruments, trial implants, and complete sets for precise surgical procedures.

Plates included in the system:

4.0ChLP Talus Plate
4.0ChLP Rectangular Plate
4.0ChLP 3D Plate
4.0ChLP Curved Plate
4.0ChLP Plate for Cuboid Bone
4.0ChLP Plate for Navicular Bone
4.0ChLP 6-Type Plate
4.0ChLP T Plate Oblique
4.0ChLP L Plate
4.0ChLP Straight Wide Plate
4.0ChLP Lisfranc Plate
4.0ChLP Reconstruction Plate

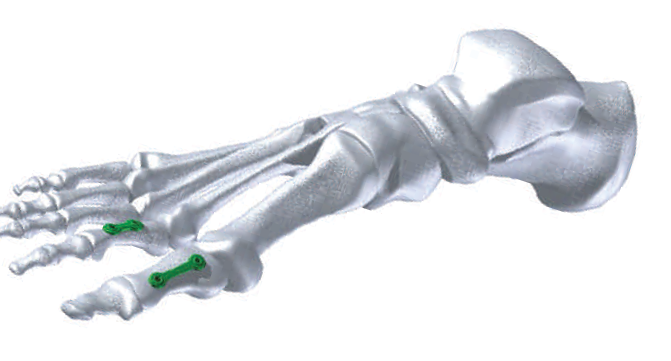

Hallux Plates System

4.0ChLP System

The 4.0ChLP Hallux Plates System is a specialized implant set designed for surgical treatments of the hallux (big toe) and small bones of the foot. The system includes a variety of titanium plates for different fracture patterns and anatomical needs, such as 2-holes plates, T-oblique plates, X-plates, and straight plates. It also offers compatible self-tapping screws (Ø2.4 and Ø2.7) and a dedicated instrument tray for precise surgical procedures.

Plates included in the system:

4.0ChLP 2-Holes Foot Plate
4.0ChLP Oblique T Plate for Small Bones
4.0ChLP X Plate
4.0ChLP T Plate

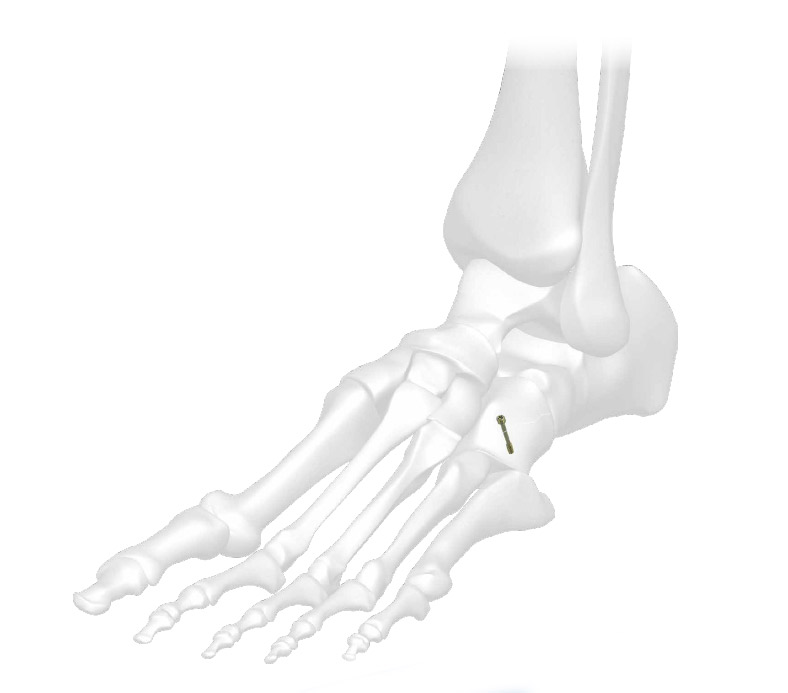

Compression Screws System

4.5 & 6.5 – ChM

The Compression Screws System 4.5 & 6.5 from ChM is designed for osteosynthesis, reconstruction, osteotomy, and arthrodesis of bones and bone fragments in the foot, humerus, femur, and tibia. The system includes cannulated, self-tapping screws with a double thread for optimal fixation and easy insertion/removal. Screws are available in titanium or implantable steel, with various lengths and diameters to suit specific clinical needs. The system also includes a complete instrument set for guided implantation and removal, ensuring precise surgical technique.

System Components:

Compression Screws Ø4.5 (Cannulated, self-tapping)
Compression Screws Ø6.5 (Cannulated, self-tapping)
Cortical Self-Tapping Screws Ø3.5 / Ø4.5
Instrument Set for 4.5 Compression Screws (Code: 15.0101.210)
Instrument Set for 6.5 Compression Screws (Code: 15.0101.220)

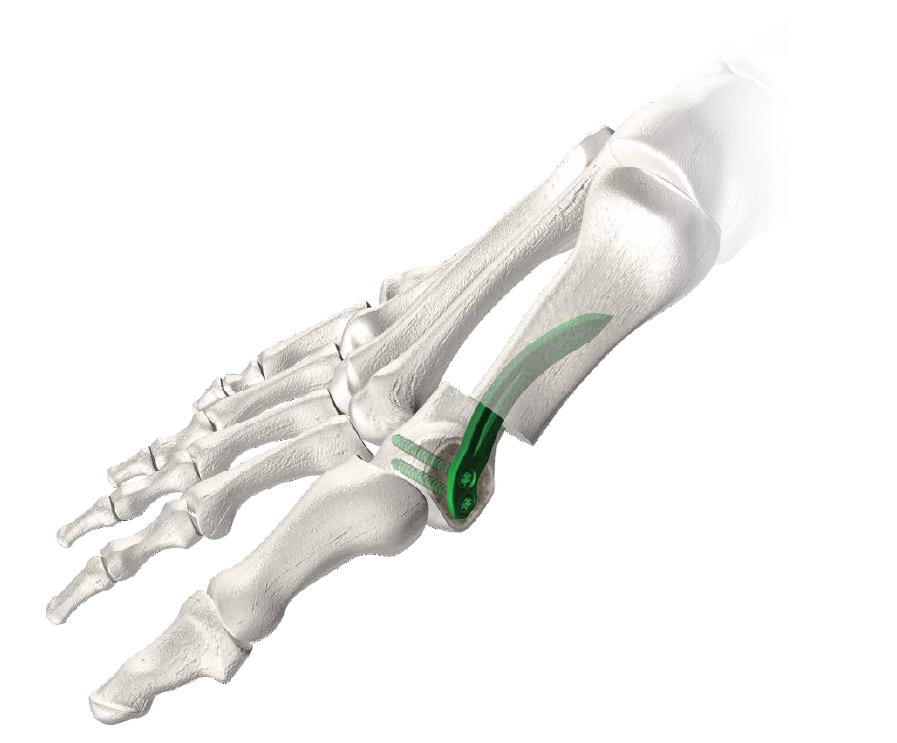

Endosteal Plate System

4.0ChLP System

The 4.0ChLP Endosteal Plate System is a titanium implant system designed for the correction of metatarsus primus varus (hallux valgus) in the first metatarsal bone. The system includes anatomically pre-shaped plates (left and right), available in multiple lengths and blade deflection variants, ensuring optimal adaptation for different deformities. The plates allow stable fixation inside the medullary canal and are secured with 4.0ChLP locking screws (Ø2.4 mm) in various lengths.

The system also includes a dedicated instrument set for guided implantation and removal, ensuring precise surgical technique and safety during procedures.

System components include:

4.0ChLP Endosteal Plates (Left and Right, various lengths)
4.0ChLP Locking Screws Ø2.4
4.0ChLP Instrument Set (Code: 15.0204.002)

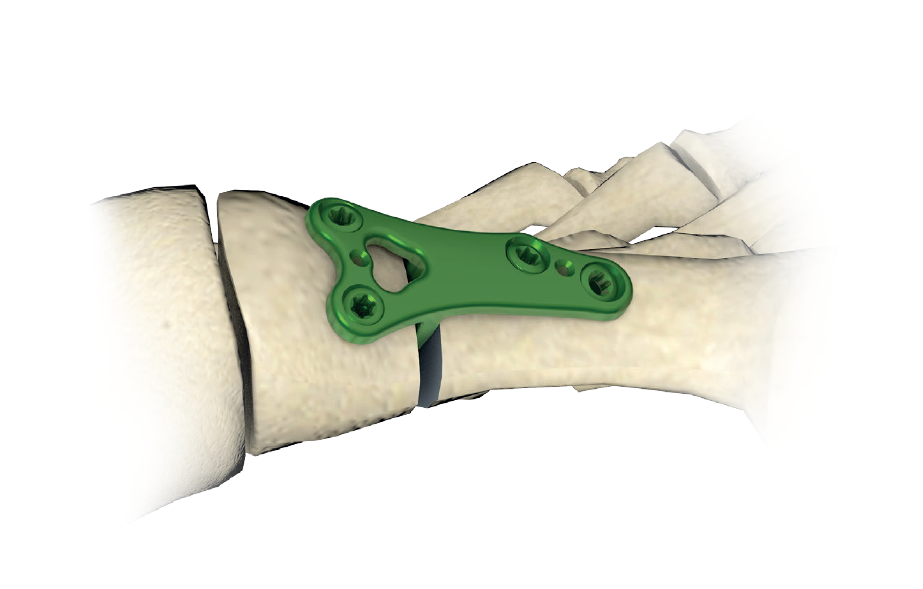

Wedge Osteotomy Plate System

4.0ChLP System

The 4.0ChLP Wedge Osteotomy Plate System is designed for opening wedge osteotomy of the first metatarsal bone, particularly indicated in the correction of metatarsus primus varus (hallux valgus). The system includes pre-shaped T- and X-shaped plates with wedge heights ranging from 2 mm to 7 mm, offering optimal fit and fixation. Compatible with 4.0ChLP locking screws (Ø2.4 and Ø2.7 mm), the plates have rounded edges and a low-profile screw head design to minimize soft tissue irritation. The set includes all necessary instrumentation for guided implantation, temporary stabilization, and secure fixation.

System components include:

4.0ChLP T-Shaped Wedge Plates (heights: 2–7 mm)
4.0ChLP X-Shaped Wedge Plates (heights: 2–7 mm)
4.0ChLP Locking Screws Ø2.4 (VA) and Ø2.7
Complete Instrument Set for Wedge Osteotomy (Code: 40.6297.000)

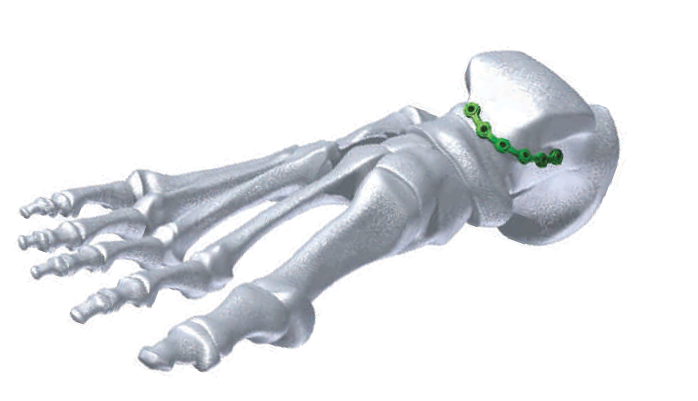

Foot Plates System

4.0ChLP System

The 4.0ChLP Foot Plates System is a modular solution for the fixation of foot fractures, mal-unions, non-unions, and arthrodesis procedures. The system includes a wide range of pre-contoured titanium plates, compatible with 4.0ChLP locking screws (Ø2.4 / Ø2.7), offering precise anatomical adaptation and minimized soft tissue irritation. The system also includes dedicated instrumentation for guided implantation, allowing surgeons to choose optimal implants for specific fracture patterns.

Key Components:

4.0ChLP Plates for Foot (e.g., talus, navicular, cuboid, 3D, reconstruction plates)
4.0ChLP Locking Screws Ø2.4 and Ø2.7
Instrument Set for 4.0ChLP Foot Plates (Code: 40.5710.020)

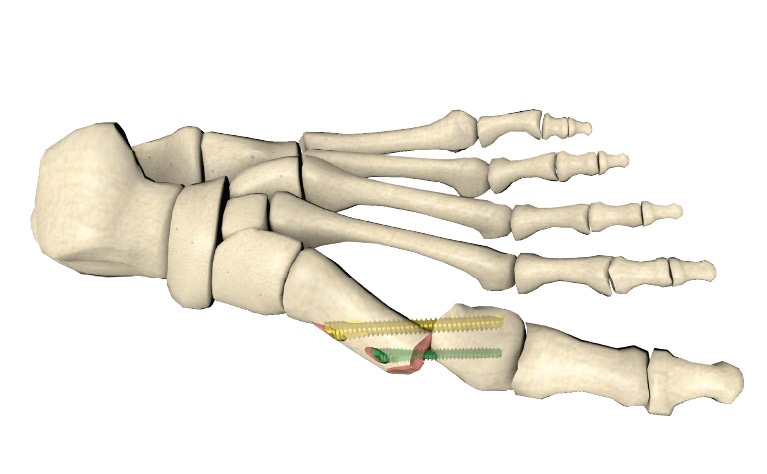

Cannulated Screw System

3.0 & 4.0 ChLP System

The Cannulated Screw System 3.0 & 4.0 is designed for minimally invasive correction, arthrodesis, and fracture fixation of small bones in the foot, such as the metatarsals and phalanges. The screws are titanium cannulated, self-tapping, and available in diameters 3.0 mm and 4.0 mm, with a wide range of lengths for optimal adaptation to various surgical indications.

The system allows for precise percutaneous insertion using dedicated instrumentation, including targeters, parallel guides, and color-coded components for easy identification. The system is ideal for procedures such as hallux valgus, hallux varus, hammer toe, and arthrodesis, ensuring stable fixation with minimized soft tissue irritation.

System Components:

Cannulated Screws Ø3.0 (Lengths: 16–60 mm, Green-coded)
Cannulated Screws Ø4.0 (Lengths: 30–60 mm, Yellow-coded)
Color-coded Instrument Set (Targeters, Parallel Guides, Sleeves, Screwdriver Tips)
Stand and Containers for Screws and Instruments
